Công ty TNHH Phân Phối ITC, đơn vị nhập khẩu và phân phối switch PLANET GSW-2620HP, 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch chính hãng PLANET tại Việt Nam.
Bảo hành thiết bị PLANET GSW-2620HP, 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch 24 tháng
Giao hàng PLANET GSW-2620HP, 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch toàn quốc
Sản phẩm PLANET GSW-2620HP, 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch xuất xứ Taiwan
Thông tin sản phẩm PLANET GSW-2620HP, 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

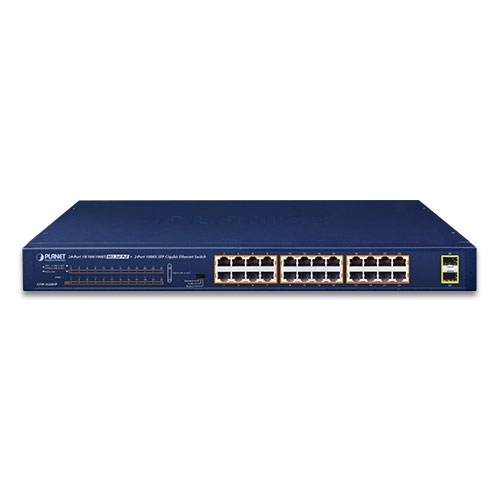

PLANET GSW-2620HP Physical Port
- 24-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
- 2 1000BASE-X mini-GBIC/SFP slots
PLANET GSW-2620HP Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 52V DC power to PoE powered device
- 240-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
PLANET GSW-2620HP Switching
- Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K jumbo frame supports all speeds (10/100/1000Mbps)
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Extend mode selection;
- VLAN mode: Ports 1 to 22 cannot communicate with each other, but can communicate with the uplink ports 23 to 24 and SFP ports 25 to 26
- Extend mode: Ports1 to 8 have data rate of 10Mbps. The farthest transmission distance up to 250 meters and all ports can communicate with each other.
- The DIP switch can isolate ports to prevent broadcast storm and defend DHCP spoofing
- Automatic address learning and address aging
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
PLANET GSW-2620HP Hardware
- 19-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- Ethernet Link Energy-saving technology
- Link down power savings
- Intelligent use of power based on cable length
| Hardware Specifications | |
|---|---|
| 10/100/1000BASE-T Copper Ports | 24 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE+ Injector Port | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| DIP Switch | Selectable operation mode
|
| Dimensions (W x D x H) | 440 x 208 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.78kg |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 275 watts/939 BTU |
| Thermal Fan | 2 |
| Protection | 6KV surge protection 8KV ESD protection |
| LED Indicators | System: Power (Green) 10/100/1000T RJ45 Interfaces 1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber) 1000X SFP Interfaces 1000 LNK / ACT (Green) |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64bytes | 38.7Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 240 watts |
| Number of PDs, 7 watts | 24 |
| Number of PDs, 15.4 watts | 15 |
| Number of PDs, 30 watts | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy-Efficient Ethernet |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
