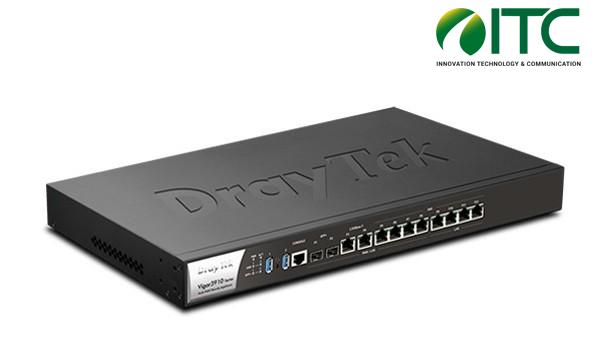

DrayTek Vigor 3910 High Performance 10G Router Router
Thiết bị định tuyến DrayTek Vigor 3910 High Performance 10G Router Router
Thông tin sản phẩm DrayTek Vigor 3910 High Performance 10G Router Router
Mô tả sản phẩm
- 2 port 10 Gigabit WAN/LAN slot SFP+(cho phép chuyển đổi WAN/LAN linh hoạt).
- 2 port 2.5 Gigabit WAN/LAN, RJ45 (cho phép chuyển đổi WAN/LAN linh hoạt).
- 4 port Gigabit LAN/WAN, RJ45 (P5-P8).
- 4 cổng Gigabit LAN, RJ-45 (P9-P12).
- 2 cổng USB, 2 x 3.0 cho phép kết nối USB 3G/4G, USB…
- 1 cổng console, RJ45.
- Multi-WAN Load Balancing and Failover, hỗ trợ đường truyền đa dịch vụ (IPTV, Internet, VoIP…).
- NAT Session: 1.000.000, NAT Throughtput: 8.5Gb/s với khả năng chịu tải lên đến 500+ user, hỗ trợ nhiều dịch vụ cao cấp: Leased line, L2VPN, L3VPN, MetroNET…
- Hỗ trợ chia 50 lớp mạng khác nhau (801.2q VLAN Tag), DMZ LAN, IP routed LAN.
- VPN lên tới 500 kênh (OpenVPN, IPSec(IKEv1, IKEv2, XAuth), 200 kênh VPN SSL….), VPN Trunking (Load balancing/Backup), VPN qua 3G/4G (Dial-out).
- Kiểm soát và quản lý băng thông tối ưu đường truyền Internet, chế độ Hight-Availability.
- Firewall mạnh mẽ, linh hoạt (IP/MAC Address, Port Service,URL/Web Content Filter…).
- Tích hợp Wi-Fi Marketing từ các nhà phát triển hàng đầu như Meganet, VNWIFI, Nextify…
- Quản lý tập trung với Cloud VigorACS 2, quản lý tập trung Access Point APM, quản lý tập trung Switch SWM.
THÔNG SỐ KỸ THUẬT
| PHẦN CỨNG | |
| Port | WAN |
| 1x 10G/1G SFP+ Fiber Slot (P1) | |
| 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3) | |
| 4x 1G/100M/10M Ethernet, RJ-45 (P5-P8) | |
| LAN | |
| 1x 10G/1G SFP+ Fiber Slot (P2) | |
| 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P4) | |
| 4x 1G/100M/10M Ethernet, RJ-45 (P9-P12) | |
| USB | |
| 2x USB 3.0 | |
| Console | |
| 1 cổng console RJ45 | |
| Nguồn | AC 100~240V, 50/60Hz |
| Power Consumption 35 watt | |
| Nút điều khiển | 1 Button Factory |
| Kích thước | 443 mm x 285 mm x 45 mm |
| Trọng lượng | 3.23 kg |
| PHẦN MỀM | |
| WAN | Multi-WAN (10Gb/2.5Gb/1Gb) |
| Outbound Policy-based Load-balance | |
| WAN Connection Failover | |
| WAN Protocol | |
| DHCP Client | |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Network | Packet Forwarding Acceleration |
| DHCP client/relay/server | |
| DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125 | |
| IGMP v2/v3 | |
| LAN DNS /DNS Forwarding | |
| Dynamic DNS | |
| NTP client | |
| Call scheduling | |
| RADIUS /TACACS+ Client | |
| RADIUS Server | |
| Active Directory /LDAP compatible (client) | |
| DNS cache/proxy | |
| UPnP 50 sessions | |
| Wake on LAN | |
| Bonjour service | |
| Routing protocol : | |
| Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries) | |
| RIP v1/v2 | |
| Management | Web-Based User Interface (HTTP/HTTPS) |
| Quick Start Wizard | |
| CLI (Command Line Interface, Telnet/SSH) | |
| Administration Access Control | |
| Configuration Backup/Restore | |
| Built-in Diagnostic Function | |
| Firmware Upgrade via TFTP/FTP/HTTP/TR-069 | |
| Logging via Syslog | |
| SNMP Management with MIB-II | |
| Management Session Time Out | |
| 2-level management (Admin/User Mode) | |
| TR-069 Management | |
| TR-104 Management | |
| Chất lượng dịch vụ | |
| QoS : | |
| Guarantee Bandwidth for VoIP | |
| Class-based Bandwidth Guarantee by User-defined Traffic Categories | |
| DiffServ Code Point Classifying | |
| 4-level Priority for Each Direction (Inbound/Outbound) | |
| Bandwidth Borrowed | |
| Bandwidth / Session Limitation | |
| Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping * | |
| VPN | VPN |
| Up to 500 VPN Tunnels (including 200 SSL VPN tunnels) | |
| Protocol: PPTP, IPSec, L2TP, L2TP over IPSec | |
| Encryption: MPPE and Hardware-based AES/DES/3DES | |
| Authentication: MD5, SHA-1 | |
| IKE Authentication: Pre-shared Key and Digital Signature (X.509) | |
| LAN-to-LAN, Teleworker-to-LAN (remote user dial-in) | |
| DHCP over IPSec | |
| IPSec NAT-Traversal (NAT-T) | |
| Dead Peer Detection (DPD) | |
| VPN Pass-Through | |
| mOTP | |
| Tính năng nâng cao | Firewall |
| DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries) | |
| Object-based Firewall | |
| MAC Address Filter | |
| SPI (Stateful Packet Inspection) (Flow Track) | |
| DoS Prevention | |
| IP Address Anti-Spoofing | |
| E-mail alert and logging via Syslog | |
| Bind IP to MAC Address | |
| Time Schedule Control | |
| Central Device Management | |
| AP Management : 30 nodes (independent with External Device feature)* | |
| Central VPN Management : 8 nodes | |
| Switch Management : 10 nodes * | |
| Content Security Management (CSM) | |
| APP Enforcement | |
| Support APPE Signature Upgrade by license. | |
| URL Content Filter | |
| Access Control : URL Keyword Blocking (White/Black List) | |
| Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking | |
| Web Content Filter (support Cyren and BPjM ) | |
| USB | 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle |
| (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer) | |
| File System : | |
| Support FAT32 / FAT16 file system | |
| Support FTP function for File Sharing | |
Công ty TNHH Phân Phối ITC, đại lý phân phối DrayTek Vigor 3910 High Performance 10G Router Router chính hãng tại Việt Nam.
Bảo hành thiết bị DrayTek Vigor 3910 High Performance 10G Router Router 36 tháng.
Giao hàng DrayTek Vigor 3910 High Performance 10G Router Router toàn quốc.
